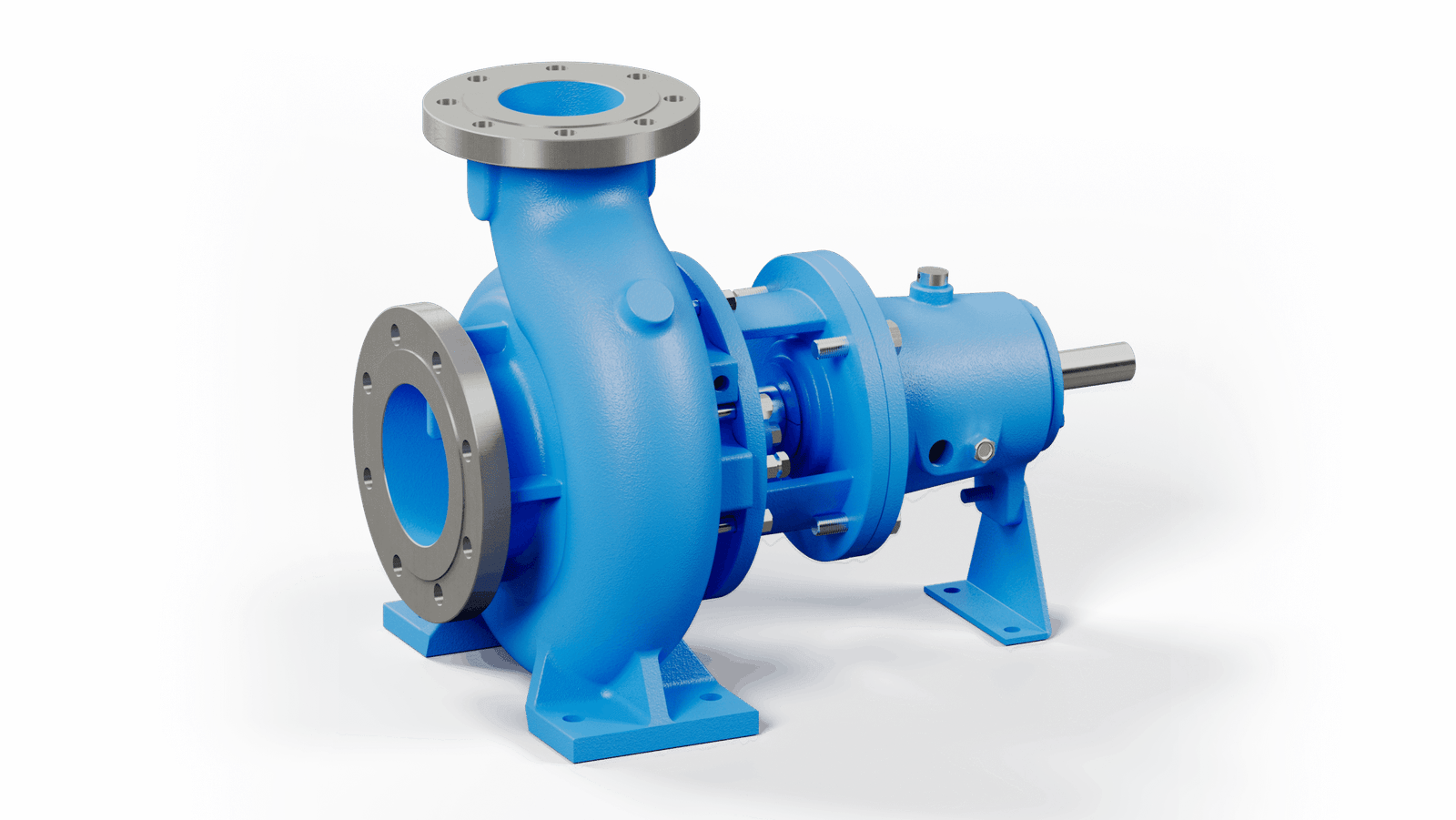

End Suction Centrifugal Process Pump Manufacturer & Supplier in India

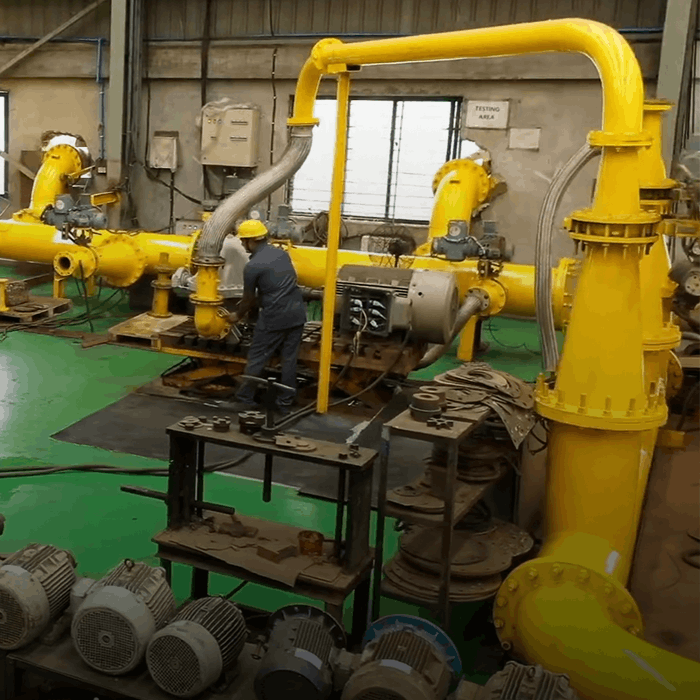

Jee Pumps’ JCPP Series is a widely trusted end suction centrifugal process pump designed for demanding industrial applications where reliability, fluid compatibility, and easy maintenance are essential. Manufactured at our GIDC Ahmedabad facility and hydraulically tested before dispatching, each pump ensures dependable performance across a wide range of process duties.

Get a Custom Quote
Download Brochure
Technical Specifications of End Suction Centrifugal Process Pump
Pump Type Single Stage, End Suction, Back Pull-Out
Capacity Up to 2200 m³/hr
Head Up to 150 Mtr
Discharge Size 25 mm to 300 mm
Operating Temperature Up to 350°C
Speed Up to 3500 RPM
Pressure Up to 15 kg/cm²
Shaft Orientation Horizontal
Sealing Options Horizontal
Drive Options Direct Motor Coupling / V-Belt Drive
Design Standards ISO 2858 / DIN 24255 (Available on Request)

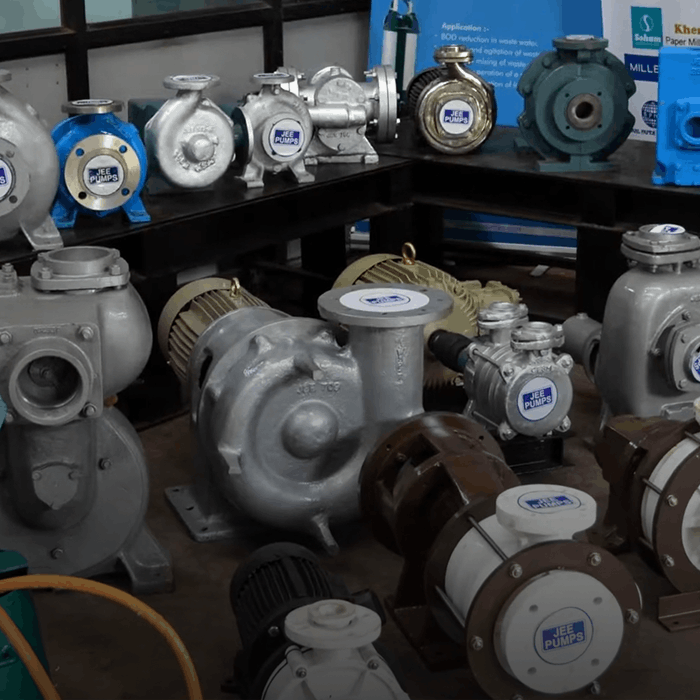

MOC C.I., C.S., SS-304/304L, SS-316/316L, Bronze, Alloy-20, CD4MCU, Hastelloy B & C

Cast Iron (C.I.)

Carbon Steel (C.S.)

SS-304 / SS-304L

SS-316 / SS-316L

Bronze

Alloy-20

CD4MCU

Hastelloy B

Hastelloy C

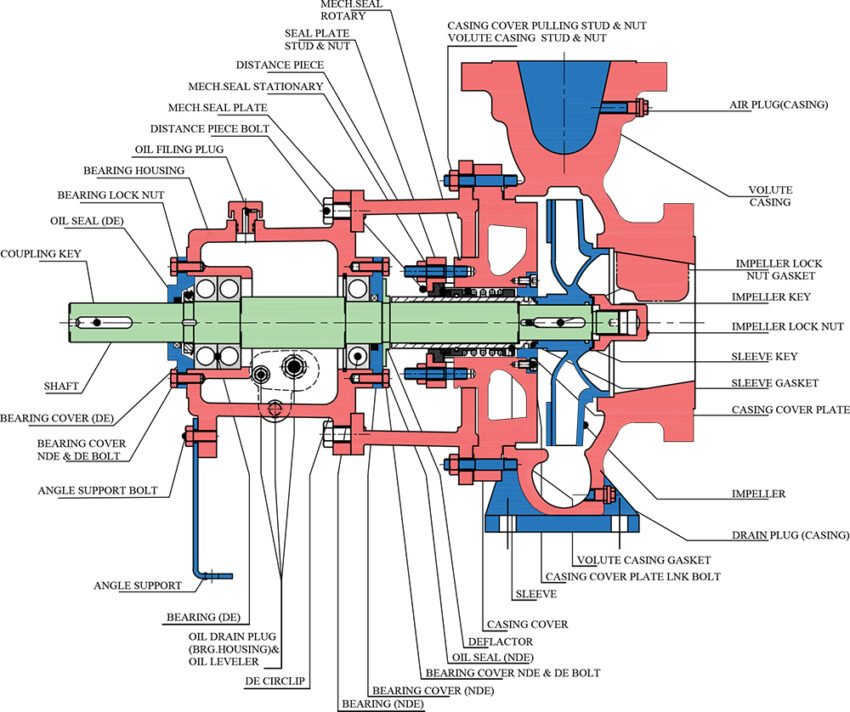

Design Features

  • Back Pull-Out Design
  • Modular Construction with High Interchangeability
  • One-Piece Self-Venting Volute Casing
  • Closed & Semi-Open Impellers
  • Three Bearing Frame Options
  • Bigger Shaft & Bearing Size
  • Oil-Lubricated Angular Contact & Cylindrical Roller Bearings
  • PTFE Gasket-Enclosed Shaft
  • Versatile Shaft Sealing Arrangement
  • Conforms to ISO 2858 / DIN 24255 Dimensions
  • Compatible with V-Belt Drive or Direct Motor Coupling
  • Low Vibration & Low Noise Operation
  • Minimum Downtime Design

Download the JCPP Series Technical Catalogue.

  • Complete specifications
  • Dimensional drawings
  • MOC options
  • Performance data
Download Brochure

Why Choose Jee Pumps

India's Trusted End Suction Centrifugal Process Pump

Confused About Which JCPP Series Configuration Is Right for Your Process?

Get Personalized Guidance from Our Pump Specialists Free of Charge.
Schedule a Free Consultation

What Is an End Suction Centrifugal Process Pump?

An end suction centrifugal process pump is an industrial pump that moves liquids using centrifugal force through a rotating impeller. It has a suction inlet at the front and a discharge outlet at the top, making it easy to install, operate, and maintain. Jee Pumps manufactures the JCPP Series for industries that need a reliable, high-performance, and efficient process pump for a wide range of fluids and temperatures.

These pumps convert mechanical energy into pressure to move water or other process fluids smoothly and continuously. They are widely used in chemical plants, textile units, pharmaceutical facilities, water treatment systems, and general process industries where stable performance, low maintenance, and long service life are essential.

How Does an End Suction Centrifugal Process Pump Work?

01
Step 1
Fluid Intake
Fluid enters through the suction end, and the volute casing ensures smooth, air-free intake.
02
Step 2
Impeller Rotation
The rotating impeller creates centrifugal force that moves the fluid outward.
03
Step 3
Velocity Build-Up
Fluid gains velocity and energy while moving through the impeller blades.
04
Step 4
Pressure Conversion
The volute casing converts fluid velocity into pressure efficiently.
05
Step 5
Pressurized Discharge
The pressurized fluid exits through the discharge outlet into the process system.

How to Select the Right End Suction Centrifugal Process Pump?

Step 1

Define Your Flow Rate Requirement

Determine the required flow rate and maximum capacity for proper pump sizing.

Step 2

Calculate Total Dynamic Head (TDH)

Calculate total head based on elevation, pipe losses, and system pressure.

Step 3

Assess Your Fluid Properties

Identify fluid type, temperature, viscosity, and chemical characteristics.

Step 4

Identify Your NPSH Requirements

Ensure available suction head is higher than the pump’s required NPSH.

Step 5

Choose Material of Construction

Select suitable materials based on fluid corrosion and temperature.

Step 6

Select Your Sealing Arrangement

Choose gland packing or mechanical seals based on application needs.

Not sure which JCPP configuration suits your process?

Share your duty parameters with our pump engineers and receive a selection recommendation within 24 hours.
Talk to Our Pump Engineers

Benefits

Lower Operating Costs
Minimal Process Downtime
Easy Integration into Existing Systems
Lowest Spare Parts Inventory Cost
Widest Fluid Compatibility
Long and Predictable Service Life

Quality

Quality That Speaks for Itself

At JEE Pumps, quality is not a department It is a culture embedded in every stage of design, manufacturing, testing, and delivery.

Our ISO-certified processes ensure that every pump is manufactured to the highest international standards, from raw material selection to final hydraulic performance testing.

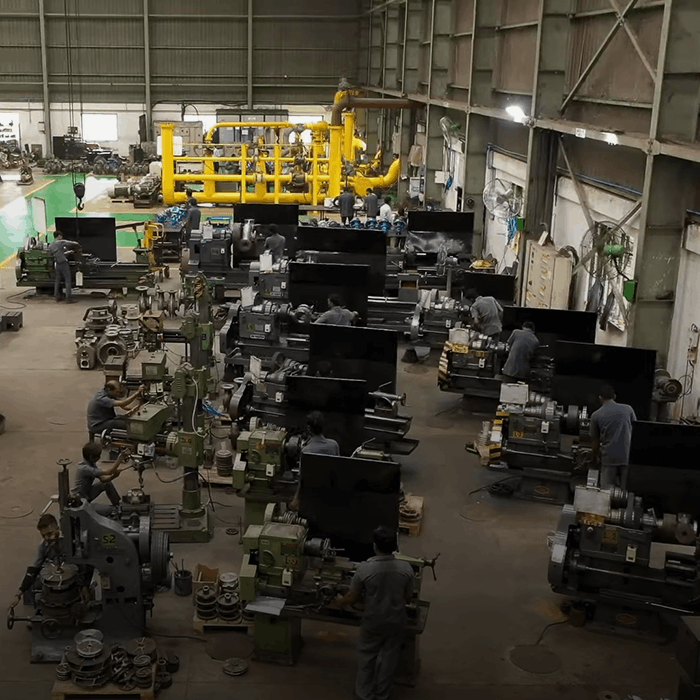

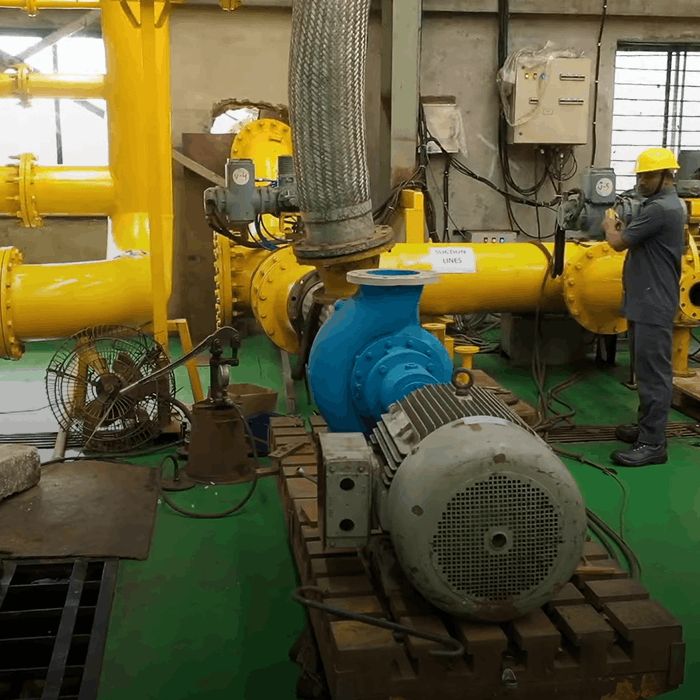

Our manufacturing facility is equipped with a dedicated quality control laboratory, CNC machining centres, dynamic balancing equipment, and a full hydraulic testing facility — enabling us to validate performance before any pump leaves our plant. This rigorous approach to quality is why our clients trust us for applications where failure is simply not an option.

Read more

Relied on by the World's Best

Trusted by India's Largest.

Talk to Our Engineers

The Right Pump Makes All the Difference.

Whether you're designing a new plant, replacing ageing equipment, or optimising an existing system — JEE Pumps has the product, the expertise, and the after-sales support to make your project a success. Our team of experienced pump engineers is ready to answer your toughest questions and deliver exactly what your process demands.

    Frequently Asked Questions

    1What is an end suction centrifugal process pump?
    A single-stage pump where fluid enters from the front and exits from the top using centrifugal force to move liquids.
    2What is the JCPP Series by Jee Pumps?
    The JCPP Series is Jee Pumps’ range of single-stage end suction back pull-out centrifugal pumps for industrial applications.
    3Where are end suction centrifugal pumps used?
    They are widely used in chemical, pharmaceutical, textile, water treatment, and other process industries.
    4What are the advantages and disadvantages of end suction pumps?
    They offer compact design, easy maintenance, and cost efficiency but are limited for very high head or heavy slurry applications.
    5How do I select the right JCPP Series pump?
    Provide details like flow rate, head, fluid properties, material, and sealing requirements to choose the correct pump.
    6What materials are available for the JCPP Series?
    Options include Cast Iron, Carbon Steel, SS-304/316, Bronze, Alloy-20, CD4MCU, and Hastelloy.
    7What is a back pull-out design?
    It allows the pump’s rotating parts to be removed without disconnecting the pipeline, making maintenance easier.
    8What temperature can the JCPP Series handle?
    The pumps can operate at temperatures up to 350°C depending on configuration.
    9How can cavitation be prevented?
    Ensure proper NPSH conditions and maintain smooth suction piping.
    10Are spare parts available for JCPP Series pumps?
    Yes, genuine spare parts such as impellers, seals, bearings, and gaskets are available.
